irq plugin
Plugin name irq
Type read
Callbacks config, read
Status supported
Since 4.0
Copyright 2007 Peter Holik, 2007 Florian octo Forster
Configuration collectd.conf(5)

The IRQ plugin collects the number of times each interrupt has been handled by the operating system.

Synopsis

 <Plugin "irq">
   IRQ "23"
   IgnoreSelected true
 </Plugin>

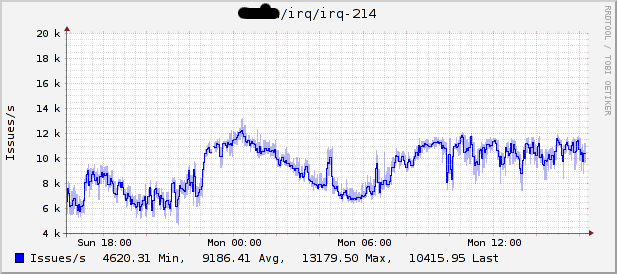

Example graphs


Dependencies

  • Linux
    • /proc-file system

Configuration

Configuration options · from collectd.conf(5)

See this section in the full configuration reference

Irq Irq

Select this irq. By default these irqs will then be collected. For a more detailed description see IgnoreSelected below.

See /"IGNORELISTS" for details.

IgnoreSelected true|false
If no configuration if given, the irq-plugin will collect data from all irqs. This may not be practical, especially if no interrupts happen. Thus, you can use the Irq-option to pick the interrupt you're interested in. Sometimes, however, it's easier/preferred to collect all interrupts except a few ones. This option enables you to do that: By setting IgnoreSelected to true the effect of Irq is inverted: All selected interrupts are ignored and all other interrupts are collected.
